MITRE D3FEND Framework Explained: Defensive Countermeasures

What is the MITRE D3FEND Framework?

For years, cybersecurity professionals have become fluent in the language of the adversary, thanks to frameworks like the Cyber Kill Chain and MITRE ATT&CK. We know what attackers do, but a crucial question often remains: "We've detected this technique... so what are the best defensive countermeasures for effective threat mitigation?"

Why D3FEND Was Created: The Defensive Gap

This is the exact problem MITRE D3FEND was created to solve. Recognizing that the industry had a detailed, standardized language for offense (ATT&CK) but lacked one for defense, MITRE developed D3FEND as its logical counterpart. It moves beyond a simple list of security controls and provides a detailed knowledge graph, or ontology, of defensive techniques.

Because D3FEND is structured as an ontology, relationships between countermeasures are explicit. This helps analysts understand how one defensive technique supports, enhances or depends on another.

D3FEND vs ATT&CK: Understanding the Relationship

The core difference between ATT&CK and D3FEND is their focus:

• ATT&CK models what attackers do.
• D3FEND models what defenders can do to counter them.

Analogy: Think of D3FEND as a catalog of defensive plays for a sports team. Each play is designed to counter a specific offensive move the opponent might make. This D3FEND ontology guide helps you choose the right play at the right time.

What D3FEND is NOT: Common Misconceptions

To truly understand D3FEND, it's important to clarify what it is not. Avoiding these common misconceptions will help you leverage the framework effectively:

• ❌ D3FEND is NOT a replacement for ATT&CK: They are complementary frameworks. ATT&CK describes offensive techniques, while D3FEND describes defensive countermeasures. You need both to get a full picture.
• ❌ D3FEND is NOT a list of tools: While it can inform tool selection, D3FEND focuses on techniques (e.g., "File Analysis"), not specific products (e.g., "Vendor X's EDR").
• ❌ D3FEND does NOT tell you how to configure the countermeasure: It provides the "what" (the defensive technique), but not the "how-to" (the specific steps for implementation or configuration). That still requires expertise and vendor documentation.

What Are "Digital Artifacts" in D3FEND?

Digital artifacts are the observable objects defenders can analyze or act upon, such as files, processes, memory, credentials, and network traffic. D3FEND techniques are organized around how defenders can interact with or manipulate these artifacts.

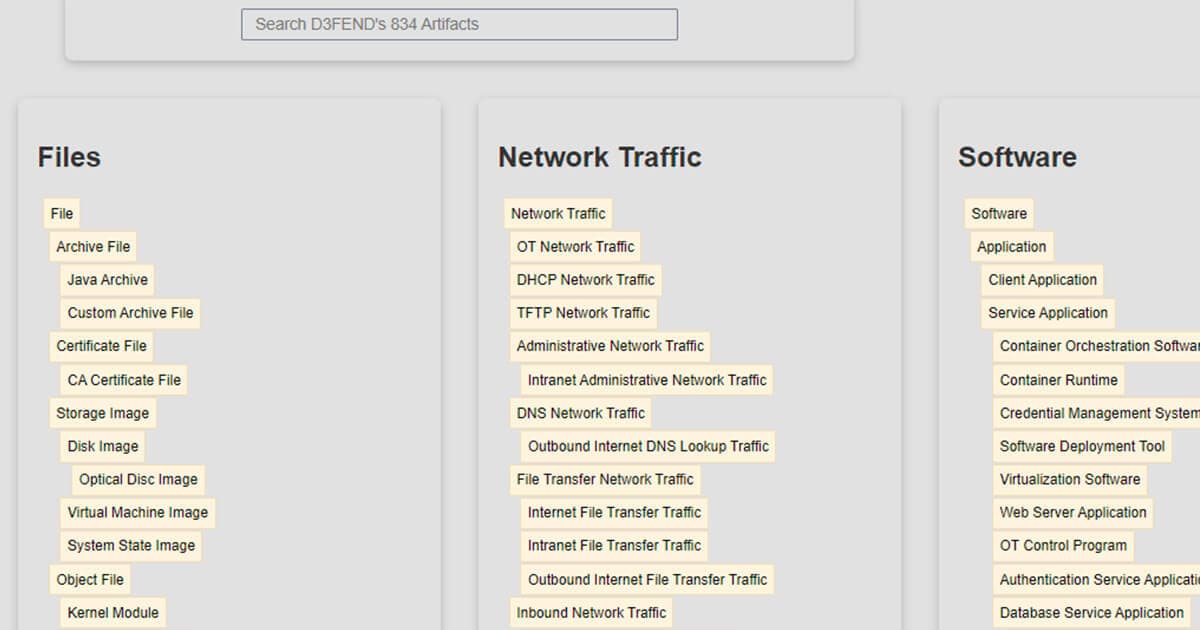

Screenshot of the 834 D3FEND digital artifacts section from the MITRE website.

How to Read the D3FEND Matrix: A Visual Guide

A common question is, "How does D3FEND work?" The answer lies in its structure. To understand how to read the D3FEND matrix, it's best to see it as a catalog of D3FEND defensive tactics. While the framework contains seven total categories, analysis often centers on the five core "active defense" stages. Among these seven categories, five are considered "active defense" (Detect, Isolate, Deceive, Evict, Restore). Model and Harden serve as preparatory and preventative foundations rather than direct active measures. As explained earlier, D3FEND techniques revolve around ‘digital artifacts’ — the observable objects such as files, processes, memory or network traffic.

The seven main defensive categories are:

1. Model: Understand and baseline your own systems, assets, and network behavior. This foundational stage is a prerequisite for all other defensive actions.
2. Harden: Proactively reduce the attack surface before an attack. Think of this as locking the doors and windows.
3. Detect: Identify adversary activity during an attack. This is your alarm system.
4. Isolate: Contain threats and prevent lateral movement. This is like locking down a specific room if an intruder gets in.
5. Deceive: Mislead and misdirect adversaries. This involves setting up decoys and traps.
6. Evict: Actively remove the adversary from the environment. This is the final step of kicking them out.
7. Restore: Return systems and operations to their normal, secure state after an incident. This stage connects defensive actions back to the broader incident response lifecycle.

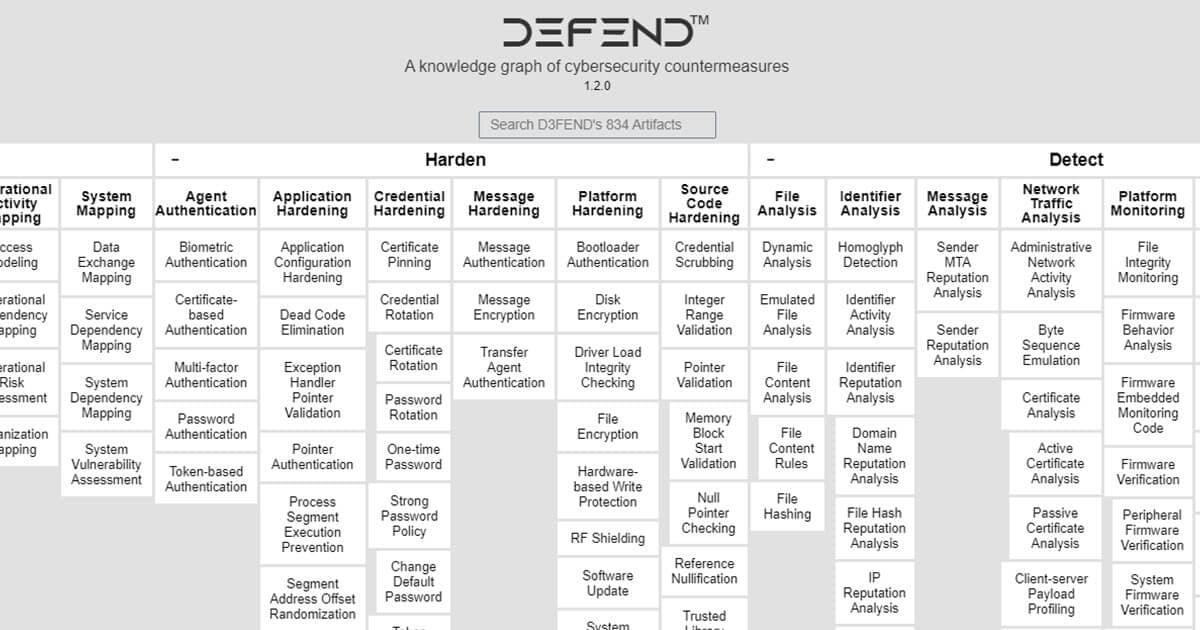

Screenshot of the MITRE D3FEND Matrix section from the MITRE website.

D3FEND vs ATT&CK: How the Two Frameworks Work Together

The process of D3FEND countermeasure mapping is how you turn threat intelligence into a defensive action plan. Here are four examples of how to map ATT&CK to D3FEND.

Example 1: Phishing Attack

• ATT&CK Technique: An employee receives a spearphishing email with a malicious attachment. This corresponds to Phishing (T1566).
• D3FEND Countermeasures:
  • Detect: Use Message Analysis (D3-MA) and Sender Reputation Analysis (D3-SRA) to identify suspicious emails.
  • Harden: Implement User Training (D3-UT) to help employees spot phishing attempts.
  • Isolate: Employ Email Sandboxing (D3-ES) to safely open attachments in a contained environment.

Example 2: Ransomware

• ATT&CK Technique: Malware begins encrypting files on a critical server, corresponding to Data Encrypted for Impact (T1486).
• D3FEND Countermeasures:
  • Detect: Use File Integrity Monitoring (D3-FIM) to alert on unauthorized file modifications.
  • Harden: Implement a robust Backup and Recovery (D3-BR) strategy to restore encrypted data.
  • Isolate: Use Execution Prevention (D3-EP) to block the ransomware process from running in the first place.

Example 3: Credential Theft

• ATT&CK Technique: An attacker uses a tool to dump password hashes from memory, corresponding to OS Credential Dumping (T1003).
• D3FEND Countermeasures:
  • Harden: Use Credential Hardening (D3-CH) and enable Multi-Factor Authentication (D3-MFA) to make stolen credentials less useful.
  • Detect: Employ Process Analysis (D3-PA) to detect suspicious processes accessing credential stores.
  • Isolate: Use Credential Transmission Scoping (D3-CTS) to prevent stolen credentials from being used across the network.

Example 4: Command and Control Over HTTPS

• ATT&CK Technique: Adversary establishes communication with a command and control server using standard web protocols, specifically Web Protocols (T1071.001) over HTTPS.
• D3FEND Countermeasures:
  • Detect: Utilize Network Traffic Analysis (D3-NTA) and Session Analysis (D3-SA) to identify anomalous communication patterns.
  • Filter/Block: Implement TLS Inspection (D3-TLSI) to decrypt and inspect encrypted C2 traffic for malicious indicators.
  • Harden: Employ DNS Filtering (D3-DNSF) to block known malicious C2 domains.

A Practical Guide to D3FEND Security Gap Analysis

One of the most powerful applications of the framework is performing a D3FEND security gap analysis. This process helps you evaluate your defenses and identify where you are most vulnerable.

A D3FEND security gap analysis is a systematic process for identifying weaknesses in your defensive security posture by comparing your current security controls against the countermeasures needed to defend against real-world attack techniques.

Here is a step-by-step process you can follow:

1. List Your Critical Assets: Identify the most important data and systems in your environment (e.g., customer database, financial records, domain controllers).
2. Identify Likely ATT&CK Techniques: Based on threat intelligence for your industry, determine which ATT&CK techniques are most likely to be used to target those assets.
3. Map to Required D3FEND Countermeasures: For each high-priority ATT&CK technique, use the D3FEND matrix to find the recommended defensive countermeasures.
4. Audit Existing Controls: Review your current security tools, technologies, and procedures. Map them to the D3FEND countermeasures you identified in the previous step.
5. Identify and Prioritize Gaps: The countermeasures that are recommended but not implemented are your gaps. Prioritize them based on the criticality of the asset they protect and the likelihood of the corresponding attack.

D3FEND Coverage Assessment Matrix (Template)

You can use a simple template like the one below to track your analysis.

Limitations of D3FEND: Setting Realistic Expectations

While D3FEND is an incredibly valuable framework, it's important to understand its current limitations to set realistic expectations:

• Database Size and Mapping: The D3FEND database is still significantly smaller than ATT&CK's and is not yet fully mapped to all ATT&CK techniques.
• Incomplete Mappings: Not every ATT&CK technique currently has a direct or equivalent defensive mapping within D3FEND.
• Conceptual vs. Technical: Some D3FEND entries are more conceptual. The technical implementation details will vary significantly based on your specific environment, tools, and expertise.

Conclusion: Building a Proactive Defense

While ATT&CK tells us what the adversary can do, D3FEND provides a roadmap for what we can do in response. By integrating D3FEND into your security program, you can move beyond a purely reactive posture and begin building a proactive, resilient, and evidence-based defense designed to counter the real-world techniques used by attackers every day.

If you're already using ATT&CK, integrating D3FEND into your workflows is the natural next step—start by mapping your top 10 ATT&CK techniques to defensive countermeasures and evaluate your coverage.
